What Are the Different Parts of a Graph?
- 0:06 Graphs in the Real World
- 1:05 The Cartesian Plane
- 2:11 Points on the Graph and Ordered Pairs
- 2:51 X and Y Intercepts
- 4:05 Lesson Summary
Did You Know…
This lesson is part of a free course that leads to real college credit accepted by 2,900 colleges.
Being able to read a graph isn't just vital for an algebra class. Graphs and charts are used everywhere! We'll take a crash course on the basic x/y plane used in algebra and give you the fundamental vocab you need.
This lesson is on the different parts of a graph. Knowing the vocabulary for the different parts of the graph is really useful because it allows you to do more than just draw it on your paper and think about it in your head; it allows you to talk about it with other people and express what you're doing in words.
Graphs in the Real World

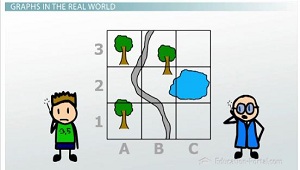

Graphs and grids are used outside of math to help people talk about lots of different things. For example, maps; when two people are looking at a map - maybe they're on radios talking about the same map, not even in the same spot - they can say where they're looking by using quadrants and grids on the map to say that, 'Oh, I'm looking at the lake that's near the quadrant C2.'
People can play chess that are in totally different places by saying things like, 'I move my Queen from A1 to A3.' That vocabulary allows them to express exactly what they're meaning without having to draw a picture that's physically there.
The Cartesian Plane

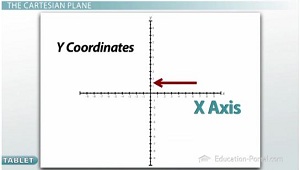

The graph that is most often used in algebra is what's called the Cartesian plane. The coordinates that go from left to right are the x-coordinates, which means that the line going left to right through the middle of the graph is what is called the x-axis. The coordinates that go up and down are the y-coordinates, which makes the line though the middle going up and down the y-axis.

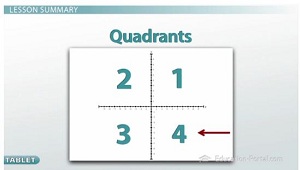

These two axes divide the plane up into four quadrants. The first quadrant is in the top right and they are labeled counter clockwise - Quadrant 2, Quadrant 3, Quadrant 4. Quadrant 1 is called Quadrant 1 because it's the place where both the x and the y are positive numbers, which means that as we go left on the x axis, we get the negatives, and as we go down on the y axis, we get the negatives.
Points on the Graph and Ordered Pairs

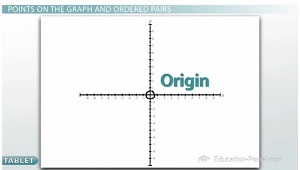

What we can now do is pick any point on this Cartesian plane and label it with what's called an ordered pair. For example, I could pick the point right here, and this would have the ordered pair x = -3, y = 5. The x coordinate always comes first and the y coordinate always comes second. The very center of the graph has a special name. The point (0,0) is called the origin.
X and Y Intercepts

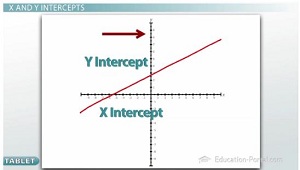

When we put a line on our graph, the place where that line crosses the two axes are special and they have special names. Because the left and right one is the x axis, the point where the line crosses the x-axis is called the x-intercept, and the point where the line crosses the y-axis is called the y-intercept.
Because the y values increase as you go up and decrease as you go down, that means that right in the middle, the y value is 0, which makes the coordinate of this x intercept (x,0). In the same way, the y intercept is exactly at the point where x isn't 3 or -5, x is right in the middle, so in this case, x is 0 and y is whatever the point is at. This means that the coordinates of the x-intercept always have a 0 for the y and the coordinates of the y-intercept always have a 0 for the x.
To review, our graph is called the Cartesian plane, or more simply, the x/y plane. We can label points with an x-coordinate and a y-coordinate, which when we put in parentheses give us an ordered pair.
The four different sections of the plane are called the quadrants, starting with Quadrant 1 on the top right and working our way around counterclockwise.
Anytime we draw a line on a graph, the point where that line crosses one of the axes is called an intercept.
